PFW European Version Impact Crusher
  • Factory Direct Sale
  • Quality Assurance
  • Quick Response
  • Service Without Worry

PFW European Version Impact Crusher

Choose your preferred machinery when purchasing equipment, and provide free shuttle transportation to visit and inspect the factory.

Processing Capacity:50-700t/

Feed Particle Size:≤850mm

Applicable Materials:Limestone, granite, river pebbles, cobblestones, quartz stone, dolomite, iron ore, concrete, coal, gypsum, etc.

Application Scope:It is widely used in ore crushing, railways, highways, large-scale water conservancy and hydropower, construction projects, machine-made sand production, dry mortar, concrete mixing stations, etc.

0371-6479 2555
7 * 24-hour Service Hotline

欧版反击式破碎机
European version impact crusher

The manufacturing process and structural design of the European version of the impact crusher make the finished product cubic, without tension and cracks, with good particle shape, adjustable discharge particle size, and diversified crushing specifications.

欧版反击破可破碎物料
European version of impact crusher that can break materials

European version impact crusher

European version impact crusher
European version impact crusher

Impact crusher
Impact crusher

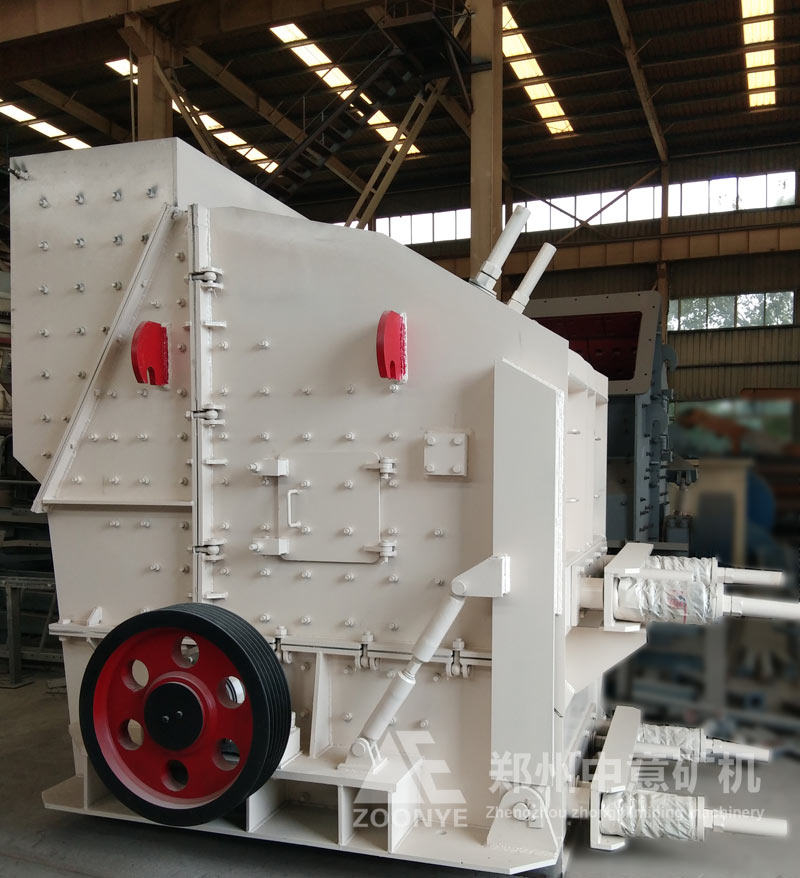

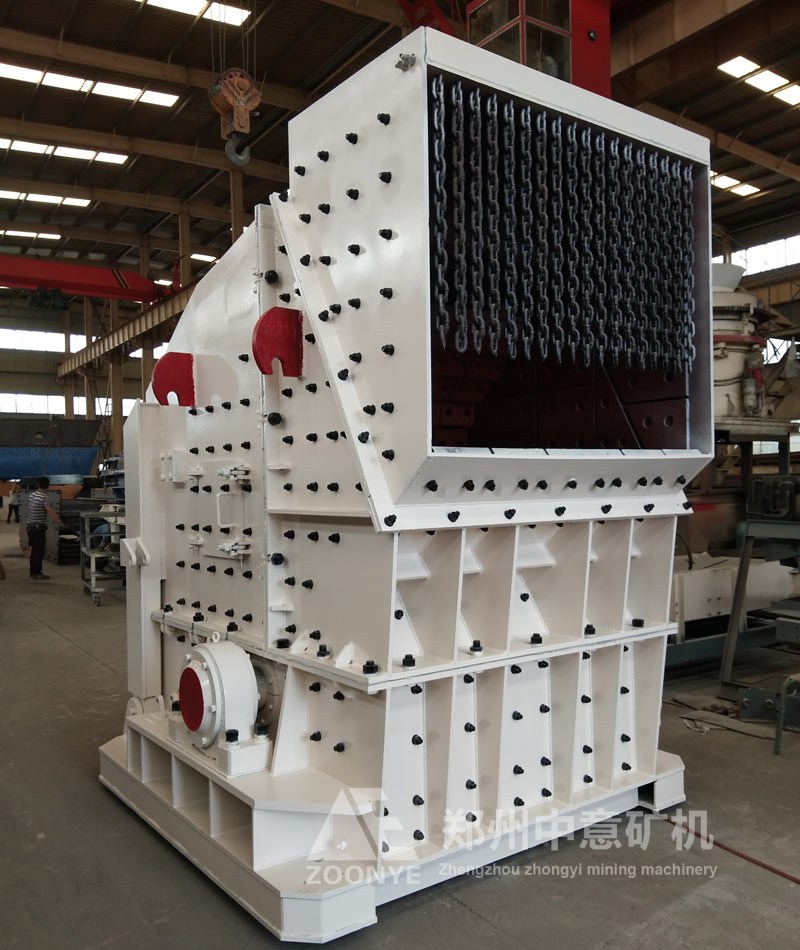

Real shot of the European version of counterattack breaking the factory
Real shot of the European version of counterattack breaking the factory

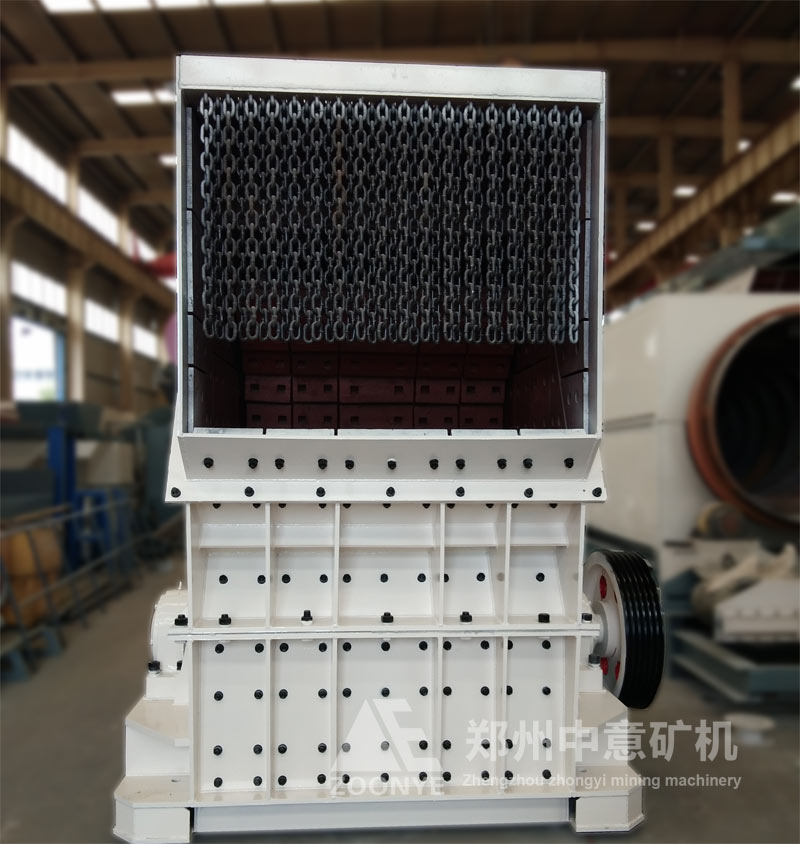

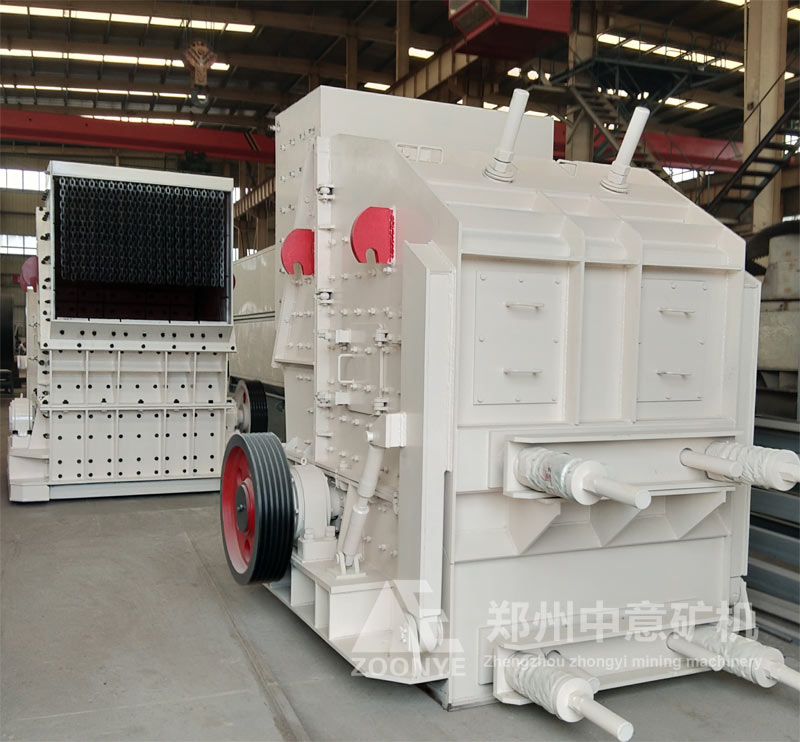

European version of counterattack crusher manufacturer
European version of counterattack crusher manufacturer

Advantages And Characteristics

Strong processing capacity and good particle shape. The equipment has a large crushing rate. The gap between the impact plate and the plate hammer can be flexibly controlled to control the discharged particle size and the particle shape is good. Structure and reliable performance: The structure is light and reasonable, the crushing performance is good, the quality is reliable and stable, the material adaptability is wide, and the safety and reliability are high. Energy saving, low cost The on-site crushing material production line effectively reduces production and operating costs. Wear parts and long life High-strength wear-resistant combination hammer with ribs at the joints to increase hammering strength, service life and safety.

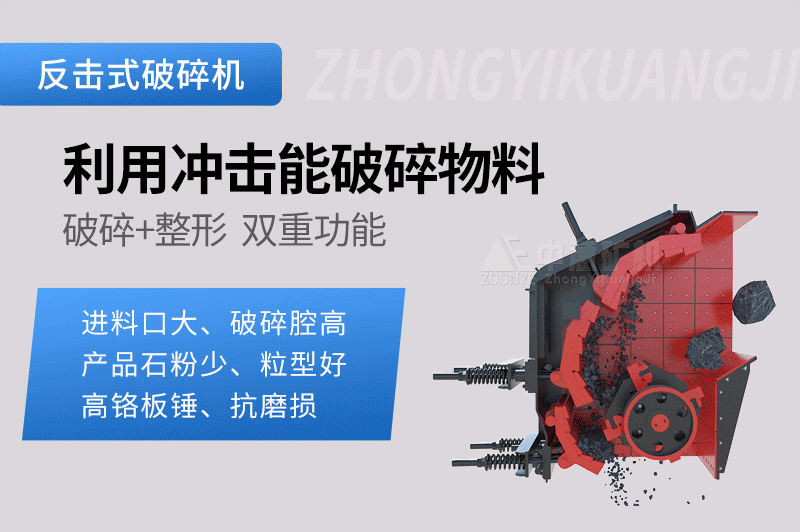

Working Principle

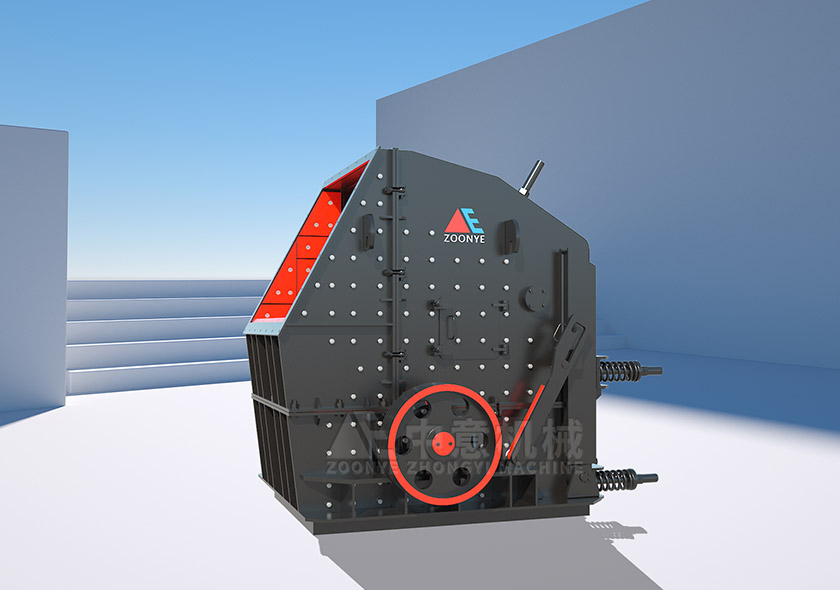

欧版反击破工作原理
Working principle of European version of counterattack

Based on novel design principles, the impact crusher adopts new concept crushing technology, which can adapt to the crushing of materials of different specifications and meet the requirements of the new process of "multiple crushing, less grinding". The application of the "stone rocking" principle makes the impact crusher not only have a high crushing rate, but also have low unit power consumption. It is a truly energy-saving crushing equipment. At the same time, long-term practice and large-scale projects have also proven that impact crushers are suitable in the field of mineral processing. It has good application prospects.

Technical Parameter

ModelSpecification(mm)Inlet size(mm)Maximum feed soft(mm)Maximum feed hard(mm)Processing power(t/h)Power(kw)Dimensions(mm)
PFW0810Φ800×10001080×106050030050-80902900×2000×2500
PFW1310Φ1300×10001170×106065035080-150132-1603250×2000×2650
PFW1314Φ1300×14001170×1460750400120-250200-2203450×2450×3000
PFW1315Φ1300×15001290×1550800450150-300160-2503500×2710×2800
PFW1318Φ1300×18001170×1820800450250-500160×23500×3050×2800
PFW1520Φ1500×20001200×2082850500300-700400-4503828×3300×3215

Customized Service Process

You can also contact us for more models and support customization
