YK Series Circular Vibrating Screen
  • Factory Direct Sale
  • Quality Assurance
  • Quick Response
  • Service Without Worry

YK Series Circular Vibrating Screen

Choose your preferred machinery when purchasing equipment, and provide free shuttle transportation to visit and inspect the factory.

Processing Capacity:20-1000t/h

Feed Particle Size:≤600mm

Applicable Materials:River pebbles, iron ore, coal gangue, granite, basalt and other materials

Application Scope:It is widely used in product classification in mining, building materials, transportation, energy, chemical and other industries.

0371-6479 2555
7 * 24-hour Service Hotline

The circular vibrating screen equipment produced by Zhongyi Mining Machinery is a kind of screening machine equipment that is widely used in production lines such as crushing, sand making and mineral processing. From the aspects of design, technology, work experience, performance, etc., the circular vibrating screen equipment produced by Zhongyi Mining Machinery has been Become a mature product. The material of the circular vibrating screen is made of high-strength manganese steel, which has strong impact resistance for materials with high hardness and large pieces. It can be equipped with rubber springs according to the actual situation to effectively reduce the noise during operation. There is enough noise during the screening process. The bouncing force prevents the material from falling into slots, which affects the screening penetration rate. Circular vibrating screens are divided into single-layer and double-layer types, and are mostly used in mining, building materials, transportation, energy, chemical and other industries for screening operations.

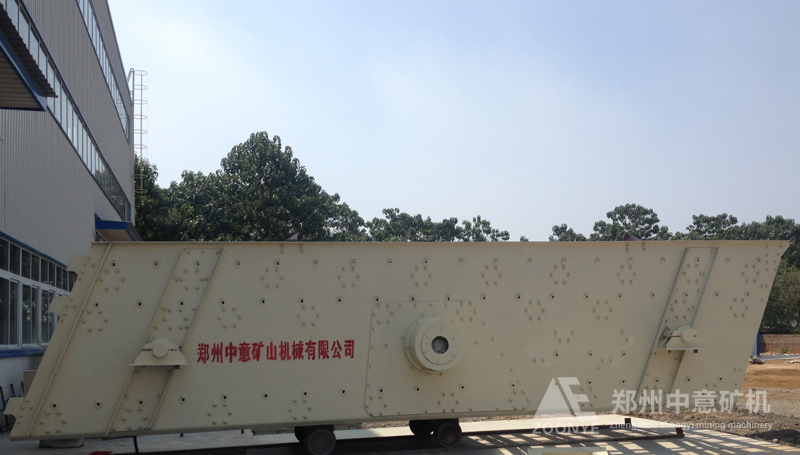

Circular vibrating screen manufacturer
Circular vibrating screen manufacturer

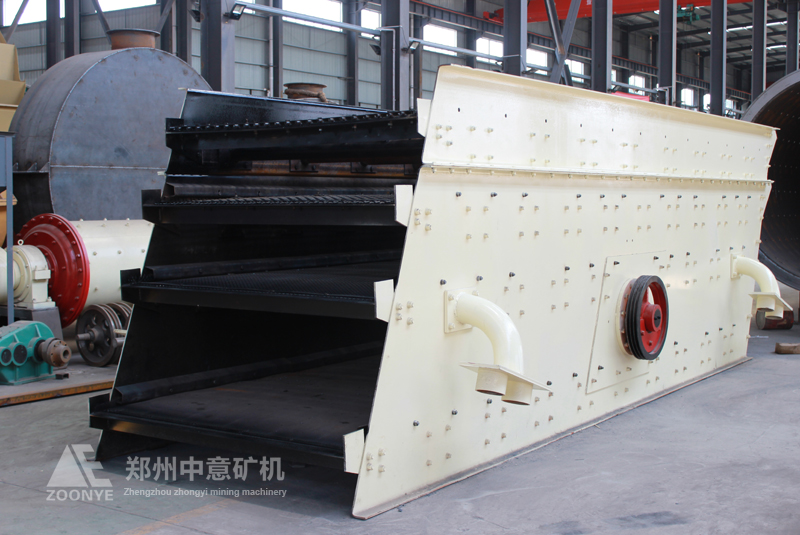

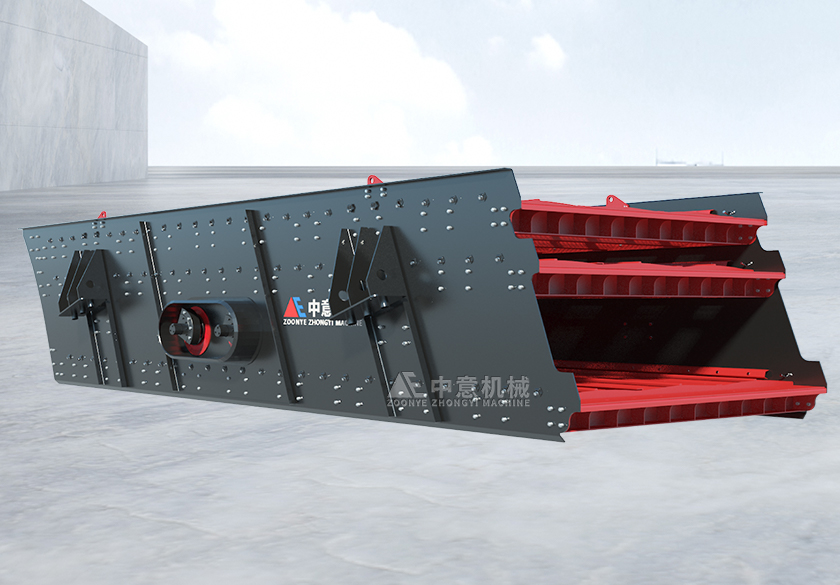

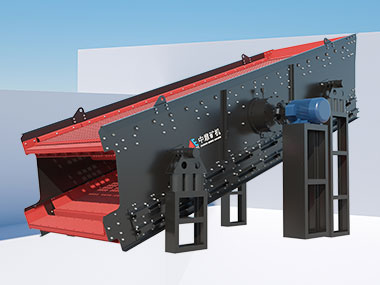

YK series circular vibrating screen
YK series circular vibrating screen

Circular vibrating screen manufacturer
Circular vibrating screen manufacturer

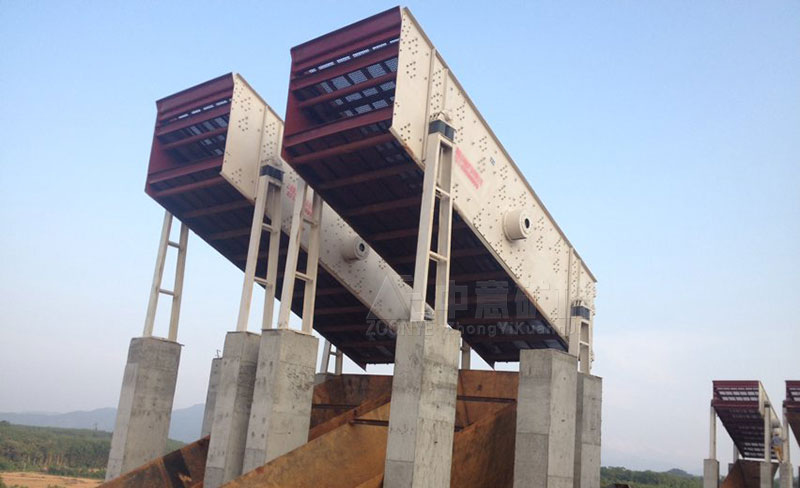

Sand and gravel circular vibrating screen
Sand and gravel circular vibrating screen

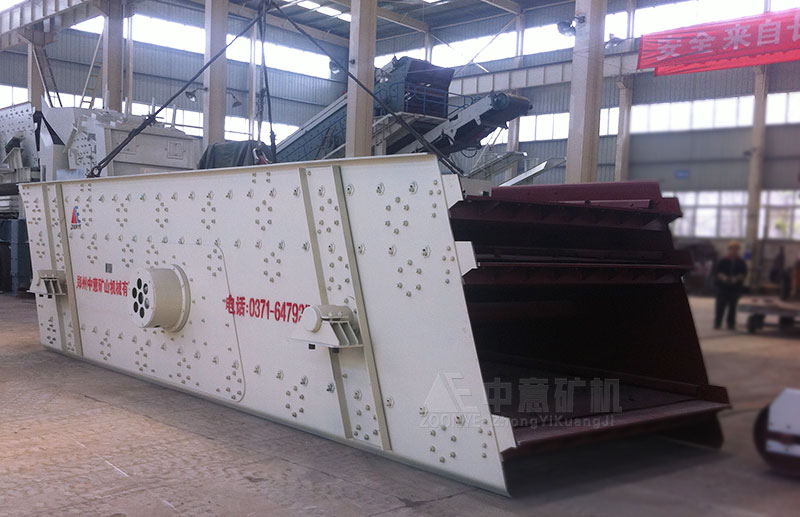

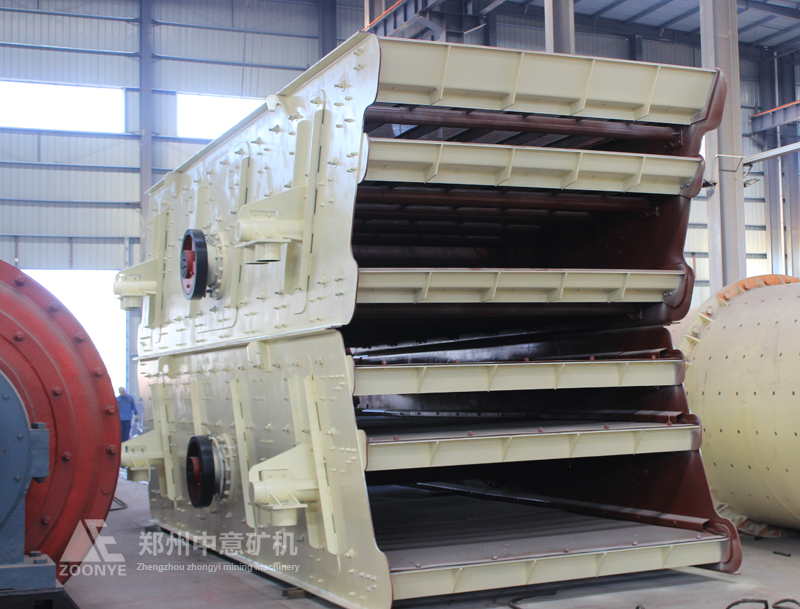

Actual shot of circular vibrating screen workshop
Actual shot of circular vibrating screen workshop

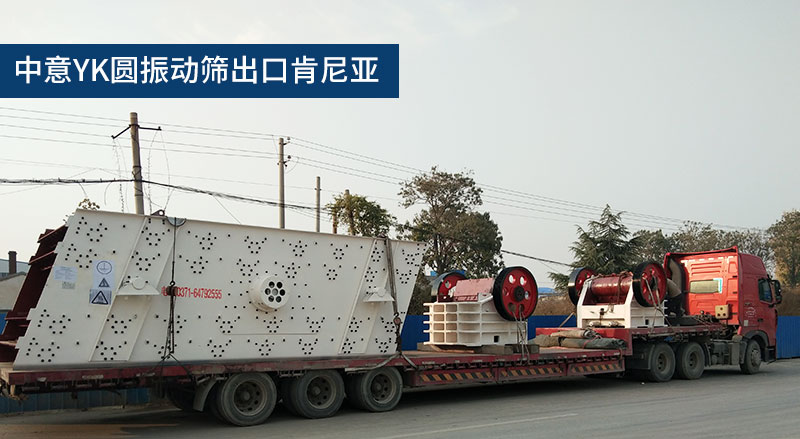

Sino-Italian circular vibrating screen exported to Kenya
Sino-Italian circular vibrating screen exported to Kenya

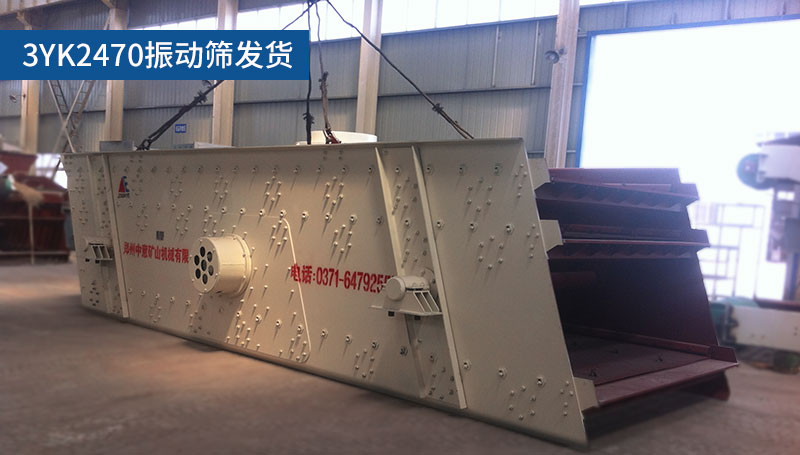

Circular vibrating screen delivery
Circular vibrating screen delivery

Advantages And Characteristics

1. Adopt tire coupling, flexible connection, smooth operation.

2. The structure is simple and uses block eccentricity as the excitation force. It has strong excitation force, low power consumption and low noise.

3. The screen beams and screen boxes are made of high-strength bolts, with simple structure and convenient and quick maintenance.

4. Ring groove rivet connection, strong and durable.

5. The equipment is given a thin oil softening device, which reduces the wear and tear of the equipment.

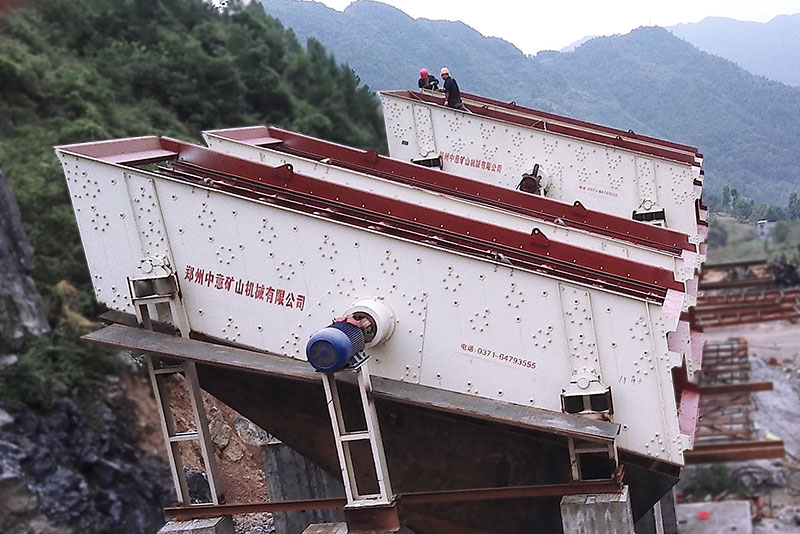

Henan cobblestone crushing and sand making project introduces multiple circular vibrating screens from China and Italy
Henan cobblestone crushing and sand making project introduces multiple circular vibrating screens from China and Italy

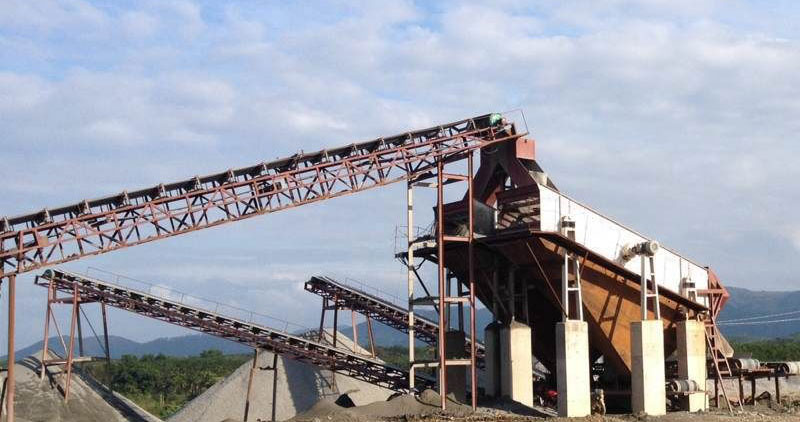

Guangdong 200 tons per hour river pebble sand production line
Guangdong 200 tons per hour river pebble sand production line

Qinghai Xining gravel production line
Qinghai Xining gravel production line

Working Principle

The motion trajectory of the screen box of the circular vibrating screen is circular or elliptical. The circular vibrating screen uses an inertial exciter to generate vibration, giving it a power and inertial force, and operates under the interaction of the two forces. The vibration source is generally an exciter driven by a motor. The circular vibrating screen is a single-axis vibrator. The main shaft fixed on the screen box is driven by the motor to rotate at high speed. The eccentric body installed on the main shaft rotates accordingly, generating centrifugal inertia force. The freely vibrating screen box is caused to vibrate in an approximately circular trajectory.

Technical Parameter

ModelNumber of screen layersScreen inclination angle(℃)Screen area(㎡)Vibration frequency(r/min)double amplitude(mm)Processing power(m3/h)Motor function(Aw)
3YK12253152.889706-820-1204
YK12351154.297020-1505.5
2YK12352154.297020-1505.5
3YK12353154.297020-1507.5
4YK12354154.297020-1507.5
YK15451156.7597020-15011
2YK1545217.56.7597022-15015
3YK1545317.56.7597022-15015
4YK1545417.56.7597022-15018.5
2YK186022010.897032-35015
3YK186032010.897032-35022
4YK186042010.897032-35030方管框架
2YK216022012.697066-72022
3YK216032012.674066-72030方管框架
3YK217032012.674066-72030
4YK216042012.674066-72030
2YK246022014.474075-75037
3YK246032014.474075-75037
4YK246042014.474075-75037
2YK247022014.497080-80037
3YK247032014.497080-80037
4YK247042014.497080-80045
2YK247522016970120-90037
3YK247532016970120-90037
4YK247542016970120-90045
3YK306032017.4740200-90045
4YK306042017.4740200-90045
2YK307522018970200-90037
3YK307532018970300-128045
4YK307542018970300-128045
2YK306022017.4740300-128037
