TES Series Three-axis Horizontal Vibrating Screen
  • Factory Direct Sale
  • Quality Assurance
  • Quick Response
  • Service Without Worry

TES Series Three-axis Horizontal Vibrating Screen

Choose your preferred machinery when purchasing equipment, and provide free shuttle transportation to visit and inspect the factory.

Processing Capacity:50-550t/h

Feed Particle Size:150mm

Applicable Materials:River pebbles, coal gangue, granite, iron ore, etc.

Application Scope:It is widely used in the production and processing of sand and gravel aggregates in hydropower, highways, railways, construction and other fields and in material classification and screening operations in construction waste treatment systems.

0371-6479 2555
7 * 24-hour Service Hotline

The TES series three-axis horizontal vibrating screen is developed by absorbing the same type of vibrating screen technology at home and abroad. Because it is installed horizontally and takes up little space on site, it is widely used in metallurgy, building materials, transportation and other industries. It is an ideal equipment for mobile crushing stations. . The three-axis drive can make the screen machine produce ideal elliptical motion. It has the advantages of circular vibrating screen and linear vibrating screen. It has the characteristics of good screen penetration, large processing capacity and small installation height. The vibration can be selected according to the actual material conditions. trajectory, which is more advantageous for materials that are difficult to screen. It is an ideal equipment for various mines, quarries, and mobile screening stations.

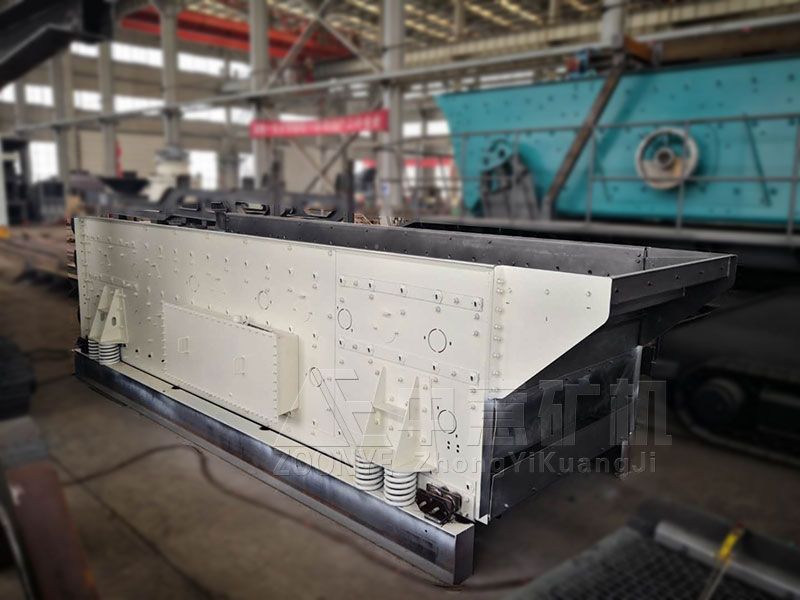

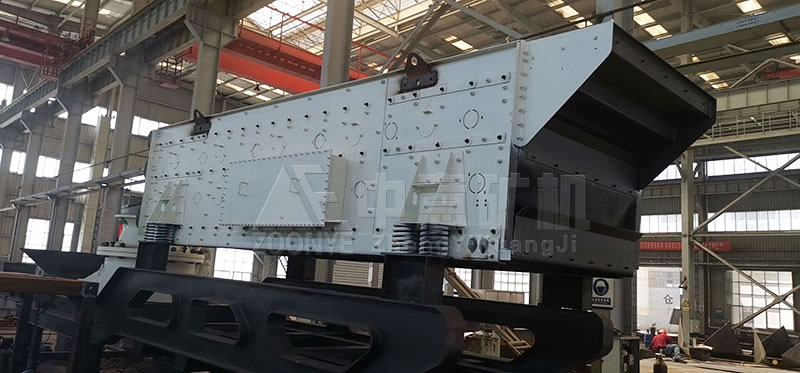

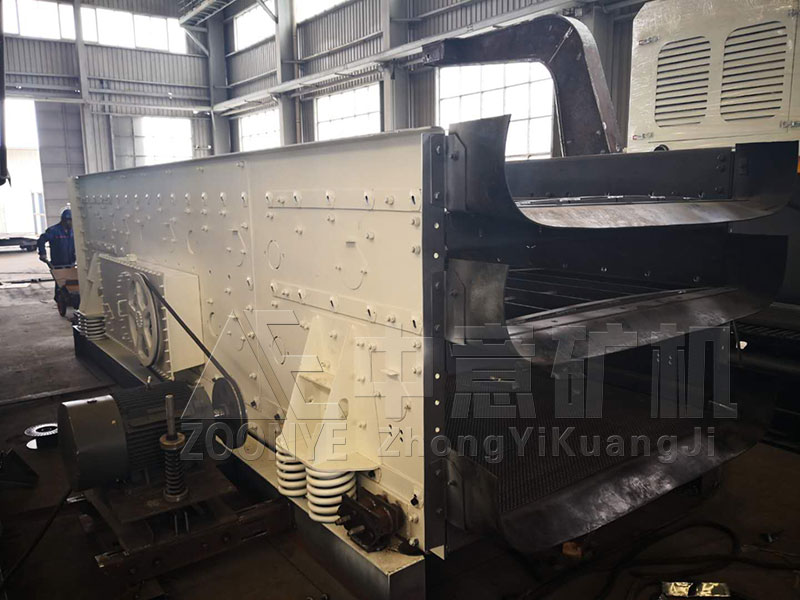

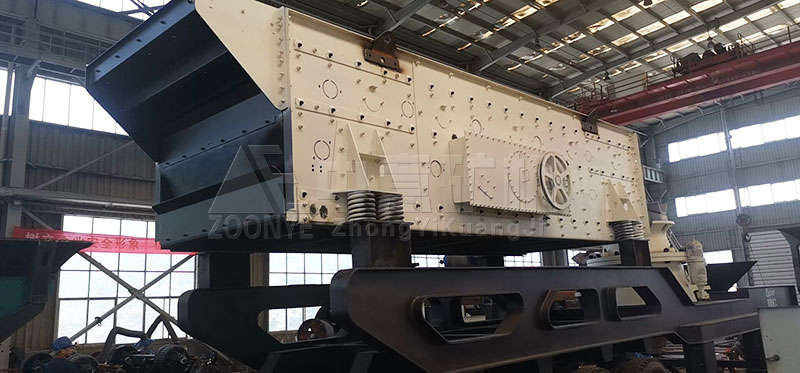

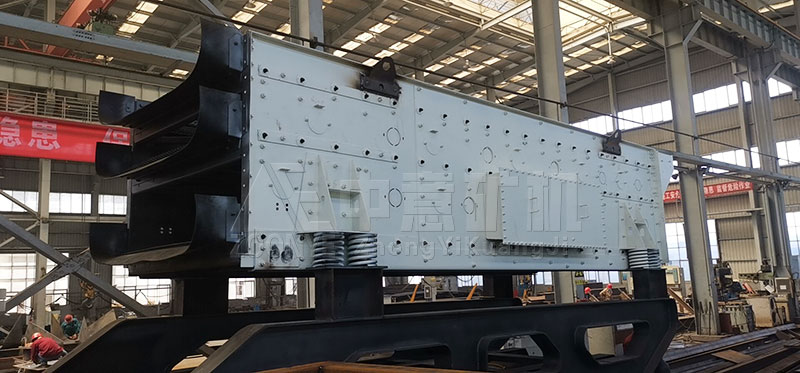

Factory real shots

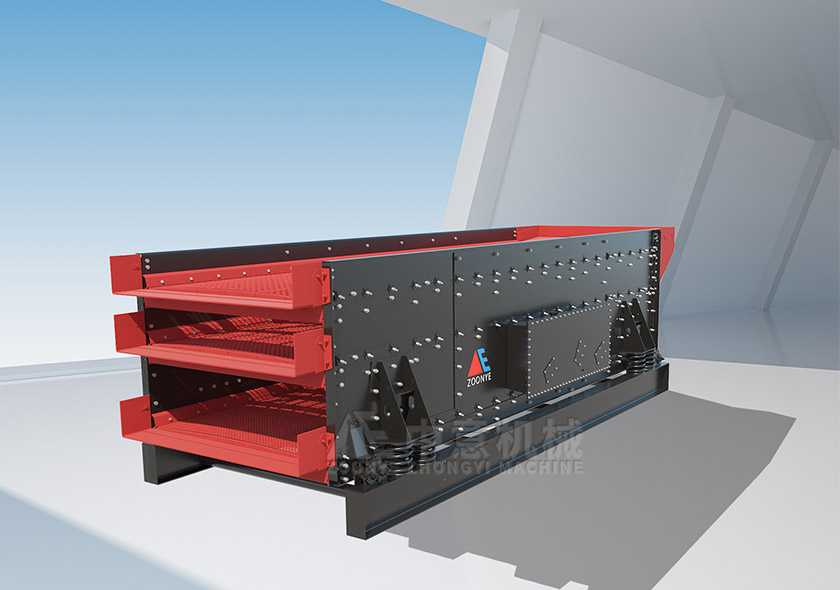

Three-axis horizontal vibrating screen
Three-axis horizontal vibrating screen

More efficient screening
More efficient screening

Elliptical motion with adjustable amplitude
Elliptical motion with adjustable amplitude

Three-axis drive ensures smooth operation
Three-axis drive ensures smooth operation

Horizontal installation method, saving space
Horizontal installation method, saving space

Advantages And Characteristics

(1) The three-axis drive can make the screen machine produce ideal elliptical motion with adjustable amplitude. The oscillation track can be selected according to the actual material conditions, which is more advantageous for materials that are difficult to screen.

(2) The three-axis drive forces synchronous vibration, which enables the screen machine to achieve a stable operating condition, which is particularly beneficial for screening that requires a large processing capacity.

(3) The three-axis drive improves the stress state of the screen frame, reduces the load on a single bearing, and evenly stresses the side plates, further improving the reliability and service life of the screen machine.

(4) Because of its horizontal installation, it effectively reduces the height of the unit and can well meet the needs of large and medium-sized mobile screening units.

(5) The bearing is lubricated with thin oil, which effectively reduces the bearing temperature and increases the service life.

(6) For the same screening area, the output of the elliptical vibrating screen can be increased by 1.3-2 times.


Working Principle

The three-axis horizontal vibrating screen uses a three-axis block eccentric vibrator as the excitation source. The three axes of the exciter are equipped with counterweight blocks of the same specifications. The gears are forced to be synchronized. The structure is compact and stable, and the energy consumption is low. The power is transmitted from the motor to the driving shaft through the pulley, and the synchronous gear forces each axis to maintain a stable phase difference, thereby generating an exciting force and forcing the screen box to perform forced continuous elliptical motion. The material uses the power of elliptical vibration to continuously beat, stratify and separate along the circumferential direction of the horizontal screen surface. When thrown, the material is loosened and stratified while moving forward, and the work of particle size classification and forward transportation is completed during the repeated throwing process.

Technical Parameter

ModelScreen surface specifications  width x length(mxm)Screen area(㎡)Vibration frequency(r/min)Double amplitude(mm)Processing power(m3/h)Motor function(kw)
TES18601.8x6.010.8645-97011-1550-32030
TES20602.0x6.01275-38537
TES24602.4x6.014.490-55040
