Mud And Gravel Separator

Is there any stone and soil separation machinery? Yes! How to separate stone and wet mud? If traditional methods are used, it is obvious that it is through a mineral washing machine and a sand washing machine or a cylinder stone washing machine, etc., through the disturbance of water flow and Cleaning is used to separate stones and stone powder. This method can achieve the purpose, but it usually requires a large amount of water. Even if the mining area is not a water-scarce area, it is difficult to cope with it from an environmental point of view, and we do not advocate this.

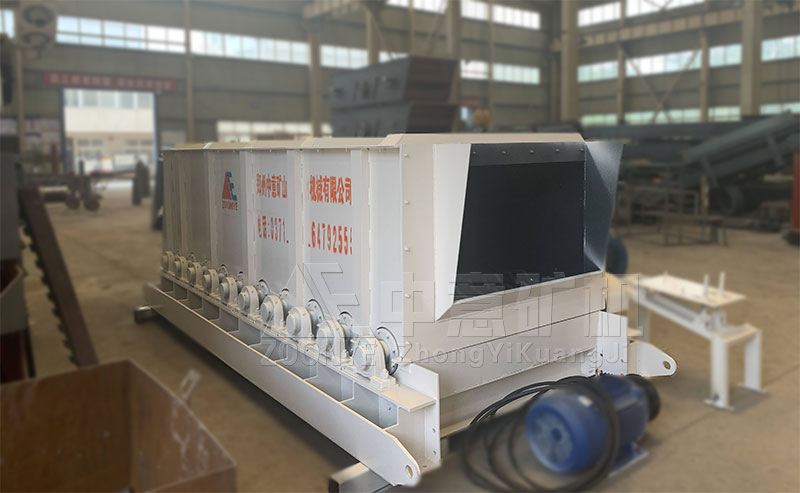

Real shots of mud and stone separator workshop

The screen trays arranged in parallel convey the feed material while separating.

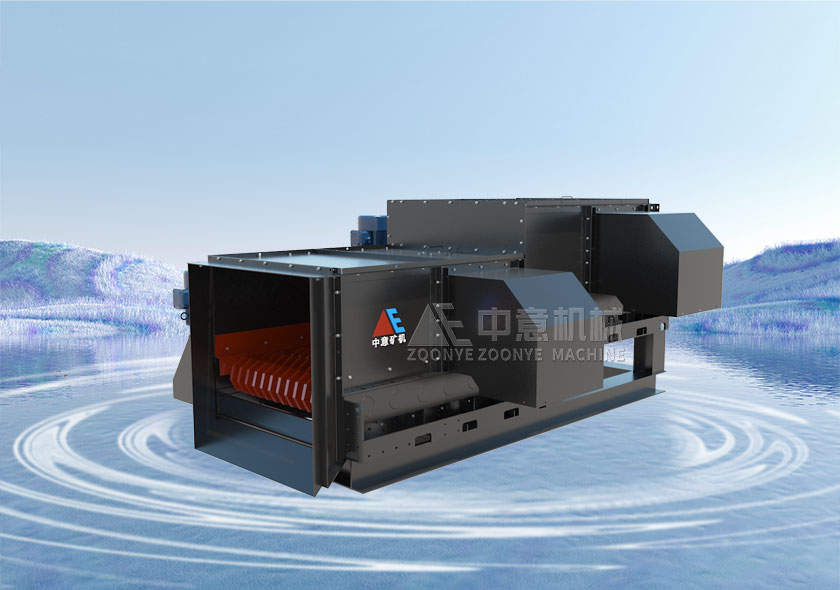

"Beautiful photos" of mud and rock separation equipment

Efficient separation of mud and rocks without water

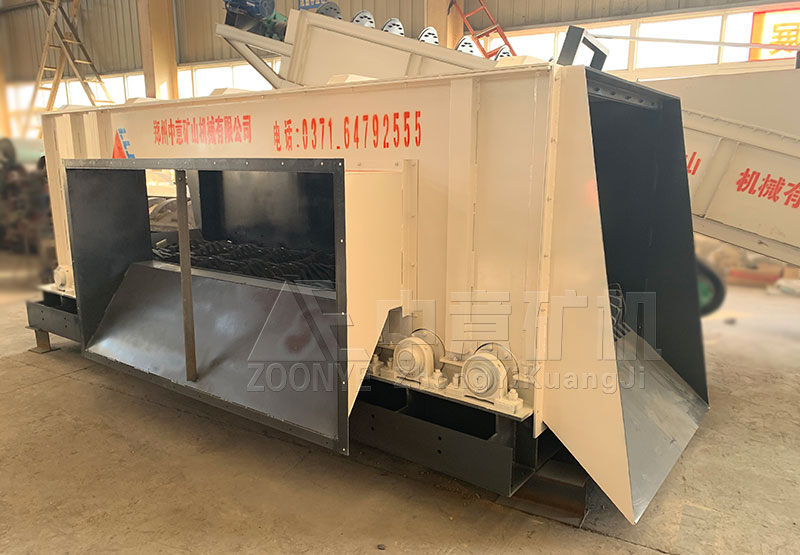

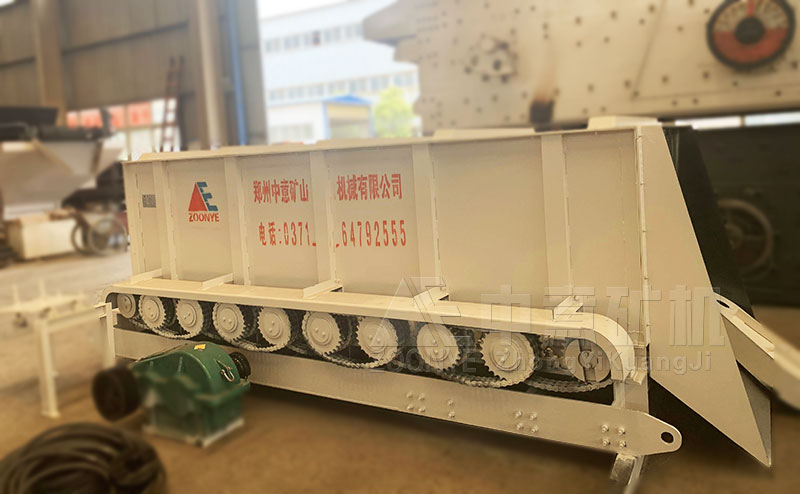

Side view of mud and stone separation equipment

Customers in Nanyang, Henan ordered a 200-ton mud and gravel separator

Debris screening equipment, with a throughput of 300 tons per hour

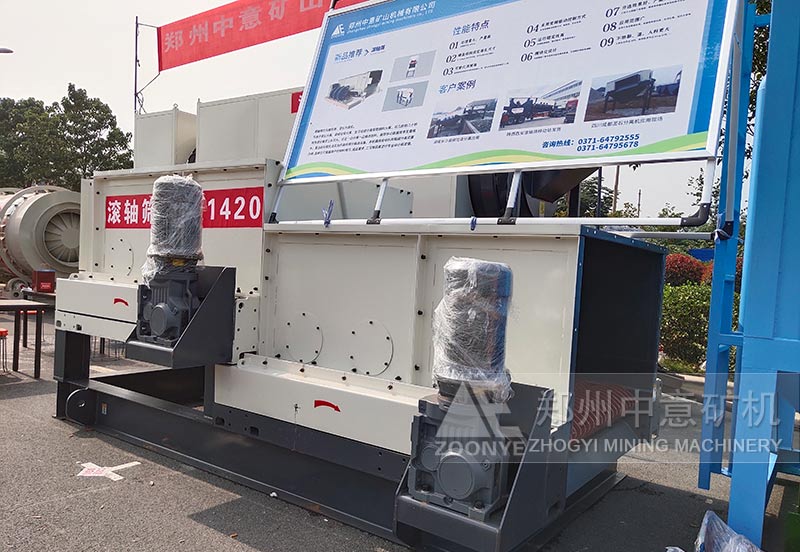

Double-layer mud and stone separator

Debris separator is also called debris separation equipment and debris separation and screening equipment. Zhongyi's new mud and stone separator adopts advanced design principles, and through design and research and development, it has greatly improved the efficiency of mud and stone separation. It can quickly separate soil and stones within a few seconds or tens of seconds, and transport feed materials while separating, achieving multiple It has high function and does not require water. It is currently the most practical and efficient screening and conveying equipment in China. This mud and stone separator can also be used as a mud and stone feeder and a mud and stone loading machine to quickly separate soil and stones and is the nemesis of mud and stone.

Advantages And Characteristics

Advantages of mud and stone separator

1. Low energy consumption and large screening processing capacity;

2. Convenient and quick installation and processing technology placement;

3. Cost-effective and low in accessories;

4. It is not so easy for materials to block and is more suitable for use in large and medium-sized production lines;

5. Save costs, increase profits, reducer drive, save energy and electricity;

6. The reducer adopts variable frequency control, with smooth start and current protection function, low energy consumption and high reliability.

Working Principle

The screen surface of the mud and gravel separator is composed of many y-axes arranged in parallel and staggered with screen disks on them. The rollers rotate through sprocket or gear transmission, and their rotation direction is the same as the material flow direction. In order to loosen the material layer on the screen so that it can pass through the screen, the shape of the screen plate is eccentric or special. To prevent materials from jamming the screen shaft, a safety device is installed. Roller screens are all seat-type, with left-hand drive and right-hand drive, and those with pulleys and those without pulleys. The ones with pulleys can move on rails.

Technical Parameter
