GZT Vibrating Feeder
  • Factory Direct Sale
  • Quality Assurance
  • Quick Response
  • Service Without Worry

GZT Vibrating Feeder

Choose your preferred machinery when purchasing equipment, and provide free shuttle transportation to visit and inspect the factory.

Processing Capacity:30-3000m³/h

Feed Particle Size:≤1000mm

Applicable Materials:Gravel and sand from gravel plant, construction waste recycled aggregate...

Application Scope:It is used in combined crushing and screening equipment in sand and gravel plants, metallurgy, coal mines, mineral processing, building materials, chemicals, abrasives and other industries.

0371-6479 2555
7 * 24-hour Service Hotline

This series of feeders is designed and manufactured by absorbing technology from Sweden and the Netherlands, and uses a vibration motor constructed with imported Japanese technology as the excitation source.

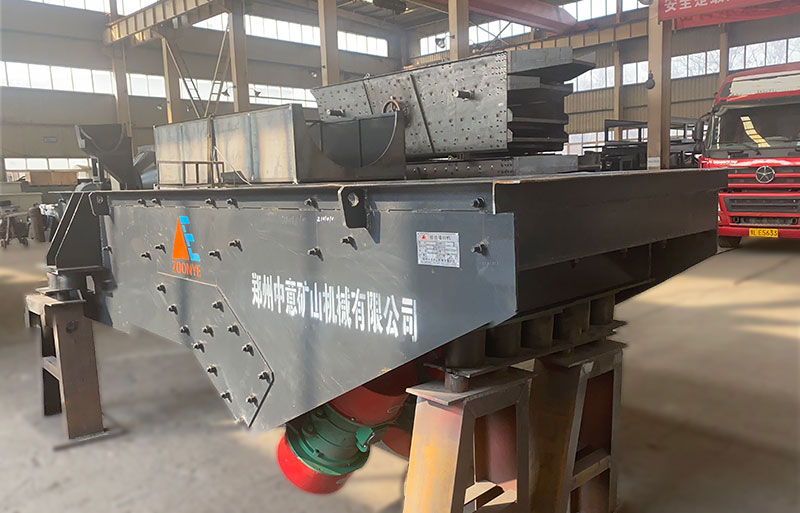

振动喂料机
Vibrating feeder

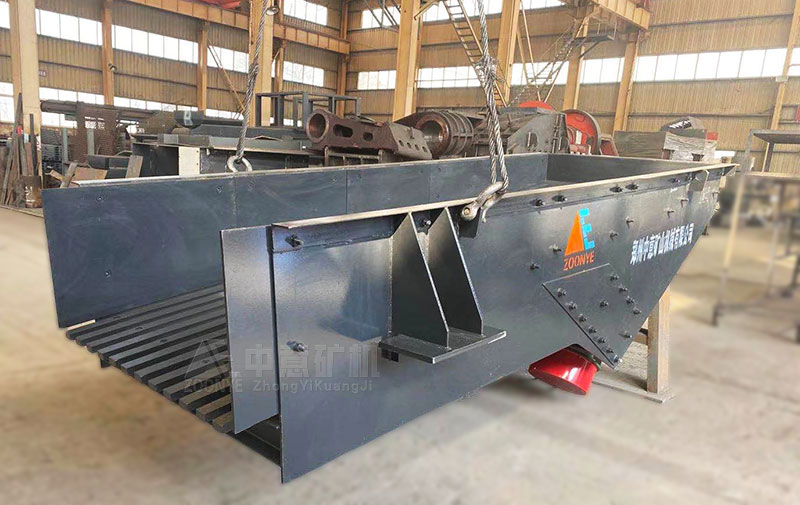

喂料机设备
Feeder equipment

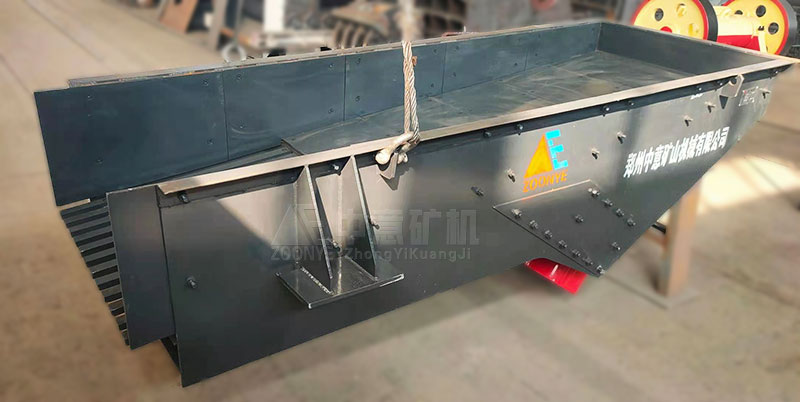

喂料机车间展示
Feeder workshop display

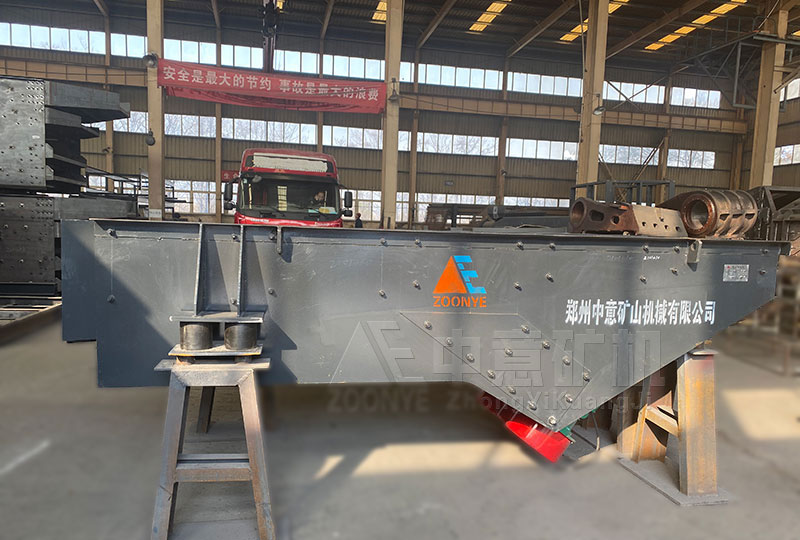

GTZ给料机
GTZ feeder

Advantages And Characteristics

1. This series of products has many types and models, and can be individually designed and specially manufactured according to user requirements;

2. All models of feeders can easily implement intelligent and humanized design;

3. Stable vibration, smooth operation and long life;

4. The excitation force can be adjusted, the flow rate can be changed and controlled at any time, and the adjustment is convenient and stable;

5. The production volume and feeding volume can be adjusted according to the actual situation.

Working Principle

The vibrating feeder equipment is an exciter composed of a pair of vibration power supplies with the same performance parameters. When the two auxiliary motors operate in reverse at the same speed, the force generated by their eccentric force and inertia drives the vibrating feeding equipment to vibrate. The machine makes it move, and during the feeding process, because smaller materials can fall through the gaps between the screen bars, it avoids the need to clean up the classification of fine and regular aggregates again, thus also playing a pre-screening role.

Technical Parameter

ModelLayerMaximum feed particle size(mm)Processing power(m³/h )Motor Power(kw)rod inclination angle(°)
GZT-0724单/双45030-802×1.90
GZT-093256080-1502×3.70
GZT-094056080-1802×3.70
GZT-1038560100-2002×3.75
GZT-1148600150-3002×5.55
GZT-1256800180-4002×7.55
GZT-1338800200-4002×5.55
GZT-1538900180-2002×5.55
GZT-1548900200-5002×7.55
GZT-15601000400-6002×135
GZT-18381000450-10002×7.55
GZT-18601000450-8002×155
GZT-20481000450-8002×155
GZT-20601200800-15002×225
GZT-226014001000-19002×305
GZT-256016002000-30002×375
