YAH Series Rod Screen
  • Factory Direct Sale
  • Quality Assurance
  • Quick Response
  • Service Without Worry

YAH Series Rod Screen

Choose your preferred machinery when purchasing equipment, and provide free shuttle transportation to visit and inspect the factory.

Processing Capacity:60-400m³/h

Feed Particle Size:≤1000mm

Applicable Materials:Decoration garbage, stale garbage

Application Scope:Recycling and recycling of old decoration waste

0371-6479 2555
7 * 24-hour Service Hotline

棒条筛
Rod screen

The garbage rod screening machine uses a double eccentric shaft vibrator, which can withstand the impact of falling large pieces of material. It has a large screening capacity. It can screen and feed out lumpy and granular materials during the production process. The special grid design, Can prevent material clogging. The grid gap is adjustable. The door-type rod screen is used for the pretreatment of stale domestic waste to achieve screening of different types of garbage. It can easily separate soft and easy-to-tangle materials and large and hard materials.

装修陈腐垃圾变废为宝
Turning obsolete decoration waste into treasure

工厂实拍

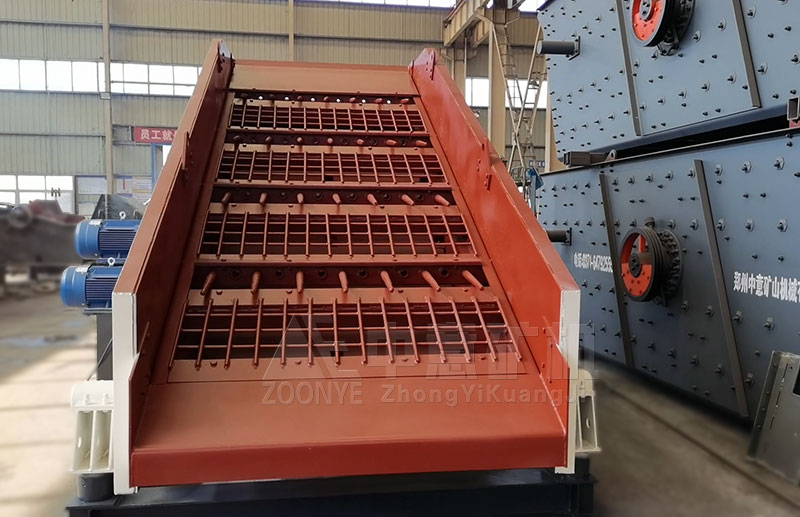

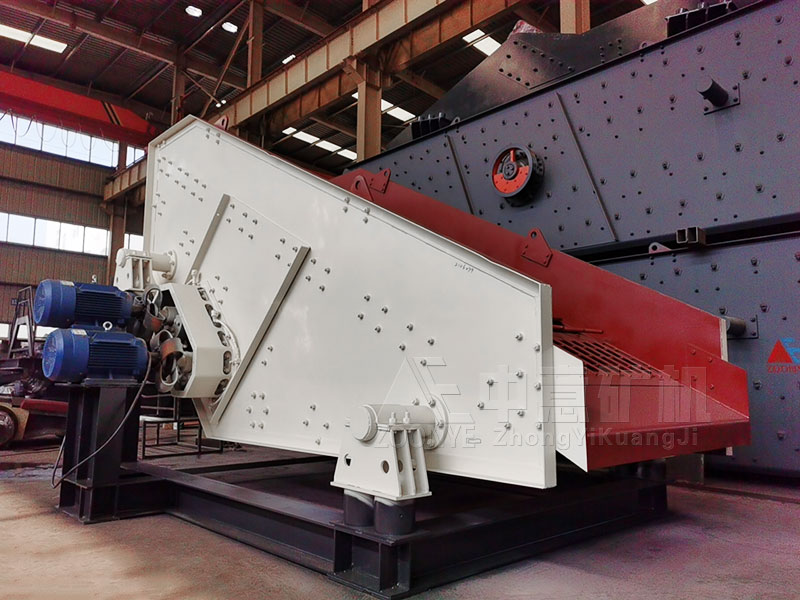

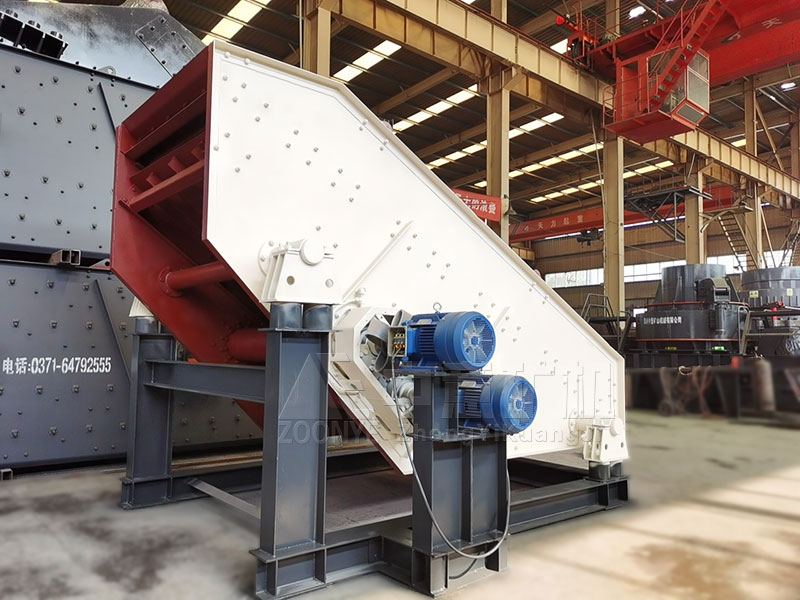

棒条筛
Rod screen

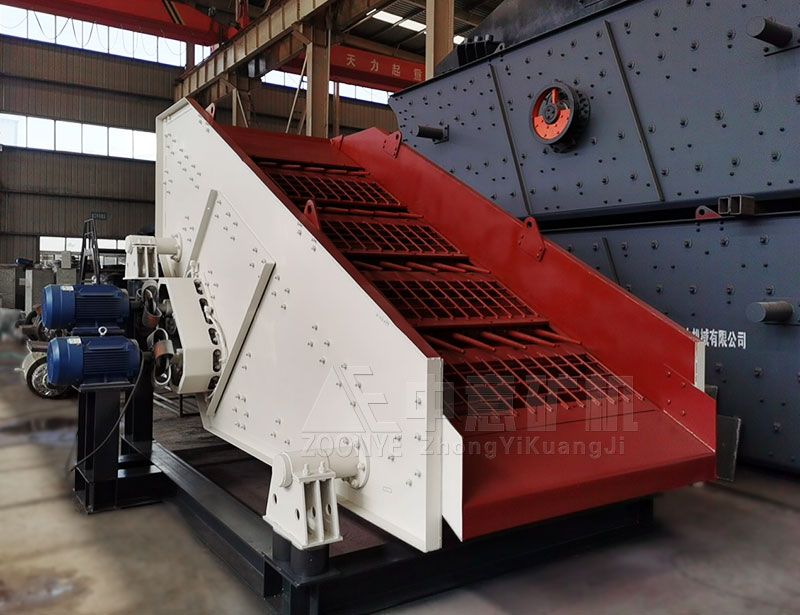

棒条筛厂家
Rod screen manufacturer

棒条筛喂料机
Actual shots of rod screen workshop

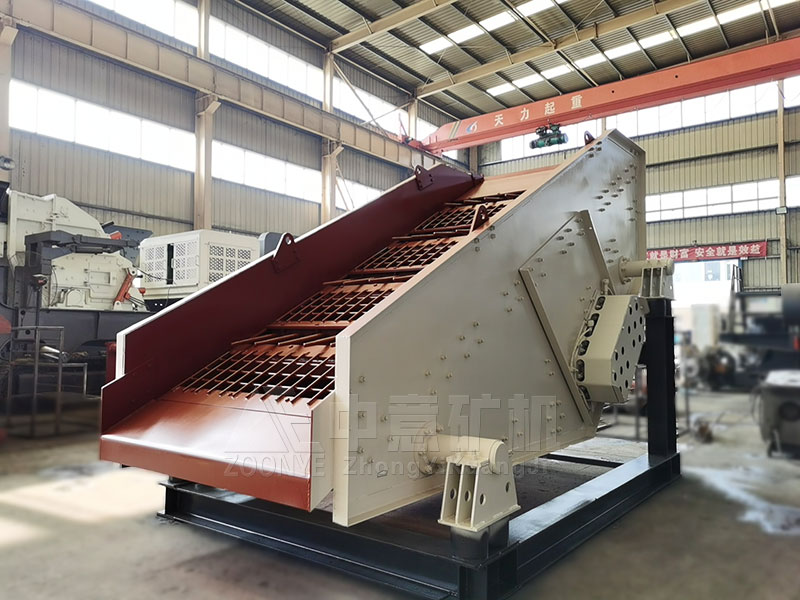

棒条筛厂家
Rod screen equipment

装修陈腐垃圾分选设备
Zhongyi mining machine rod screen

Advantages And Characteristics

1. Simple and compact structure, beautiful appearance, high rigidity of the whole machine and high strength of each part;

2. It is relatively small in size and light in weight, and has large processing capacity per unit of equipment volume and weight, which facilitates system process layout;

3. Relatively low energy consumption and high screening efficiency;

4. Easy to install and debug, stable and reliable operation, easy to operate and maintain;

5. The screen surface structure and type are modular in design, easy to replace, and can meet different operating needs;

6. It has a large processing capacity and is not easy to block holes. It is suitable for separation, classification and effective screening of high moisture and large viscosity materials, and has a wide range of applications.


Working Principle

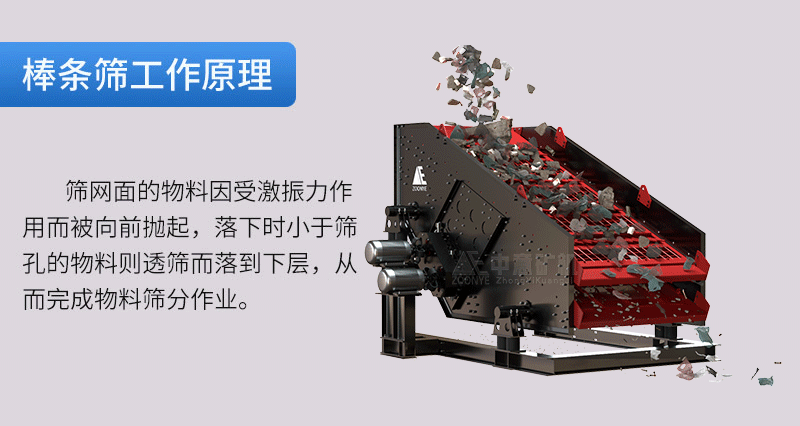

棒条筛工作原理
Working principle of rod screen

When the rod screen is working, the exciting force generated by the vibrator is transmitted to the screen surface in the screen box through the screen box. The exciting force generated by the vibrator is a longitudinal force, forcing the screen box to drive the screen surface forward and backward longitudinally. Displacement. Under certain conditions of the rod vibrating screen, the materials on the screen surface are thrown forward due to the excitation force. When falling, the materials smaller than the screen hole will pass through the screen and fall to the lower layer. The motion trajectory on the mesh surface is parabolic motion, and the rod screen completes the material screening operation due to such repeated material movement.

Technical Parameter

ModelPower(kw)Throughput(m³/h)
F5YAH1640-2P11*260-200
F5YAH1840-2P11*280-300
F5YAH1860-2P15*290-350
F5YAH2160-2P15*2110-400
